FNIRSI® DPOX180H 2-IN-1 Dual Channel 180MHz 500MS/s Digital Phosphor Oscilloscope Signal Generator—
$137.00
The Story

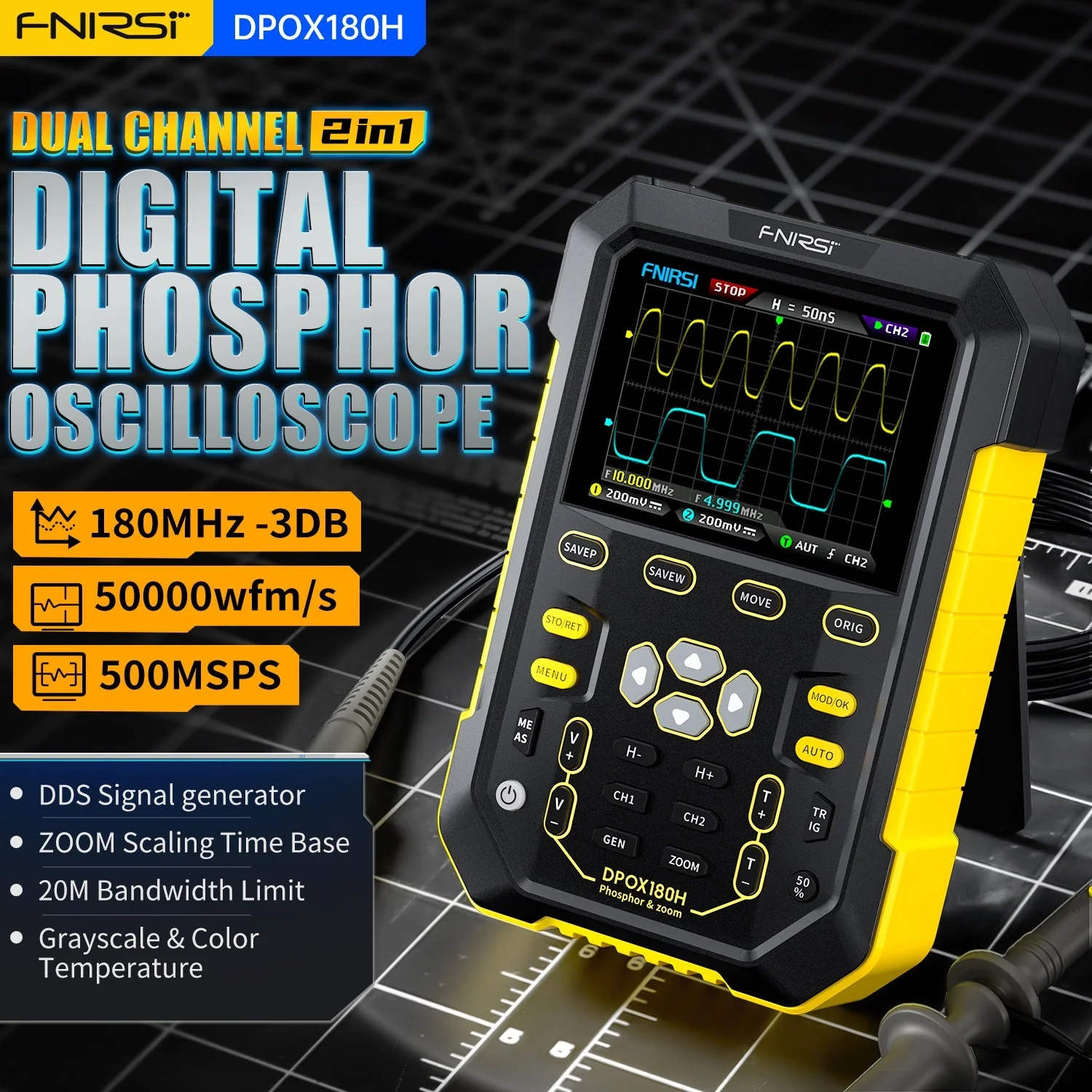

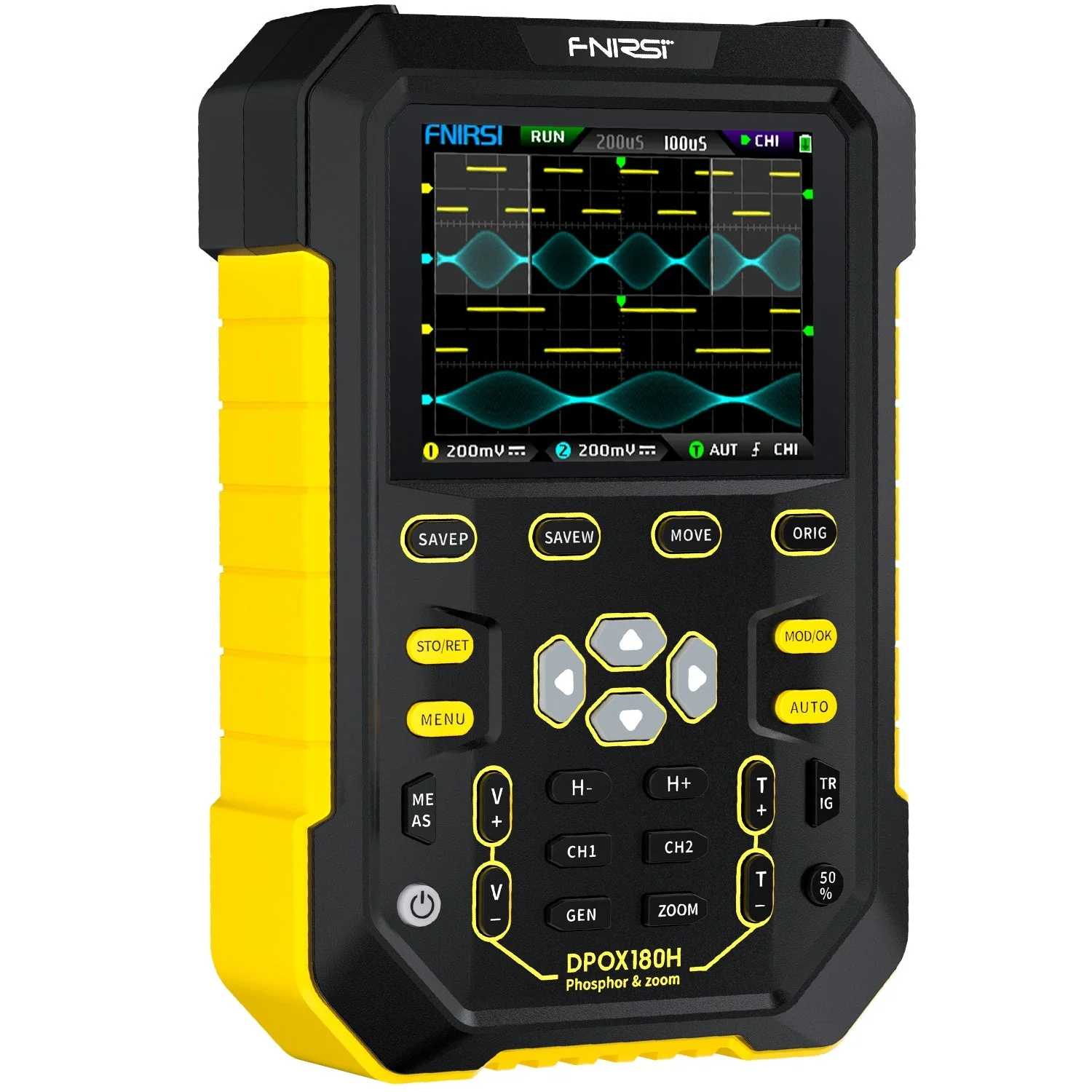

The DPOX180H is a cost-effective, handheld dual-channel digital phosphor oscilloscope from FNIRSI, combining an oscilloscope and signal generator. It features a 500MSPS real-time sampling rate, 180MHz bandwidth, and a 2.8-inch high-contrast IPS LCD. With a refresh rate of up to 50,000 waveforms per second, it captures even rare signal anomalies. The ZOOM time base aids digital protocol analysis, and with 5mV sensitivity, it can measure small signals accurately. Key features include noise filtering, a high-precision digital trigger with three modes, and a DDS signal generator supporting up to 20MHz. Additional functions include one-button auto adjustment, waveform storage for up to 250 sets, high-voltage protection up to 400V, USB export, and fast charging (5V/2A).
Features
- 2 Channels Digital Phosphor Oscilloscope
- 2 in 1 Handheld Oscilloscope+ DDS Signal Generator
- 180Mhz Bandwidth 500MSa/s Sampling Rate
- Storage Depth 120Kpts
- Maximum measurement voltage ±400V
- 200mv/div-10v/div vertical sensitivity
- Support waveform image storage and export.
- Trigger function: auto/normal/single
- Effortless Usage: one-key-auto
- Seamless Operations: Enhanced Data Saving
Specifications
Brand
FNIRSI
Model
DPOX180H
Number of Channels
2
Analog Bandwidth
180MHz
Max Waveform Capture Rate
50000wfm/s
Real Time Sampling Rate
500MSa/s
Maximum Sampling Rate
500MSPS
Input Coupling
DC/AC
Rise Time
2.5nS
Storage Depth
120Kpts
Water Resistance Level
IPX6
Input Impedance
1MΩ-18PF
Vertical Sensitivity
5mV ~ 10V(1X)
Time Base Range
5nS ~ 50S
DC Accuracy
±2%
Time Accuracy
±0.01%
Measurement Range
40mV ~ 80V(1X)
Digital Phosphor Technology
Support

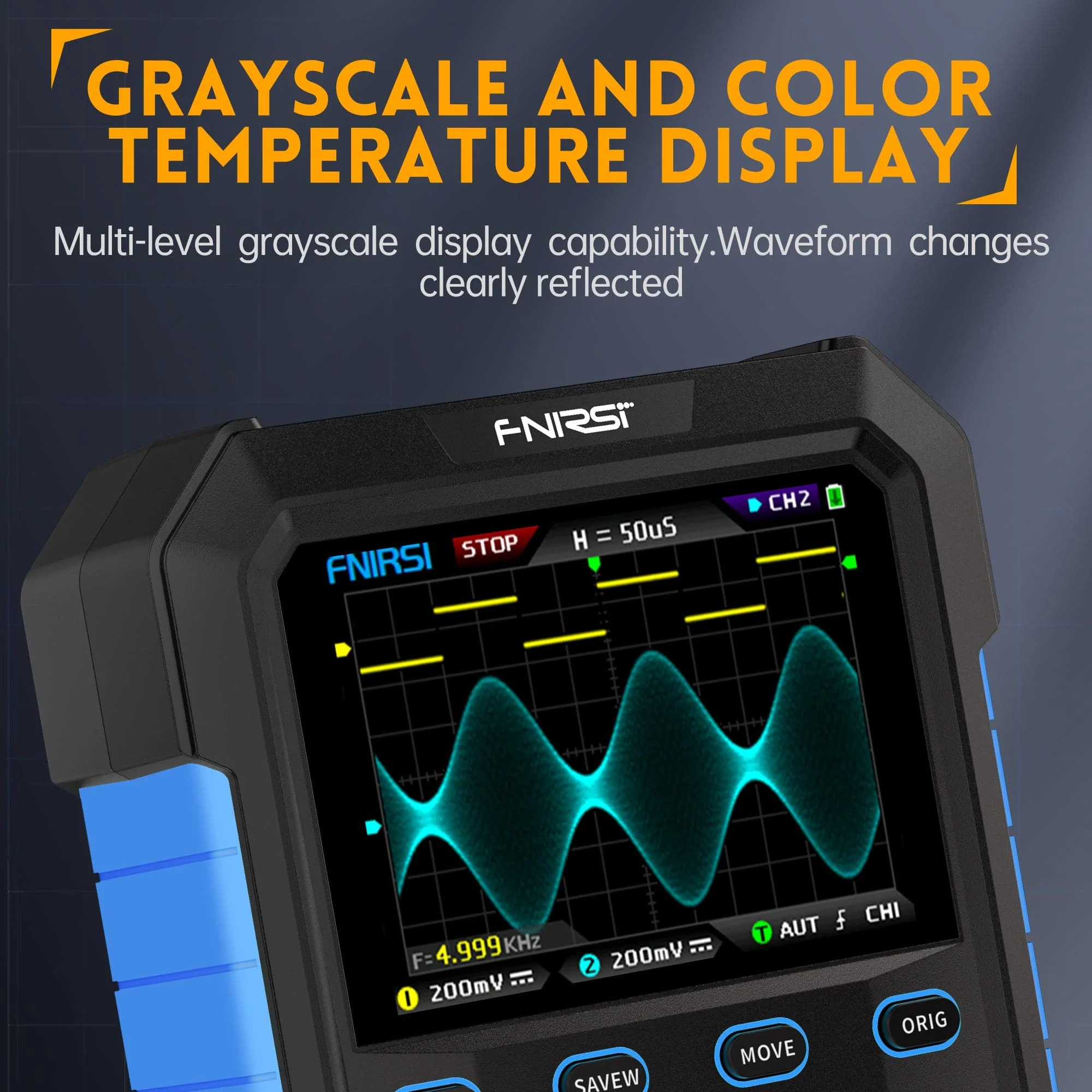

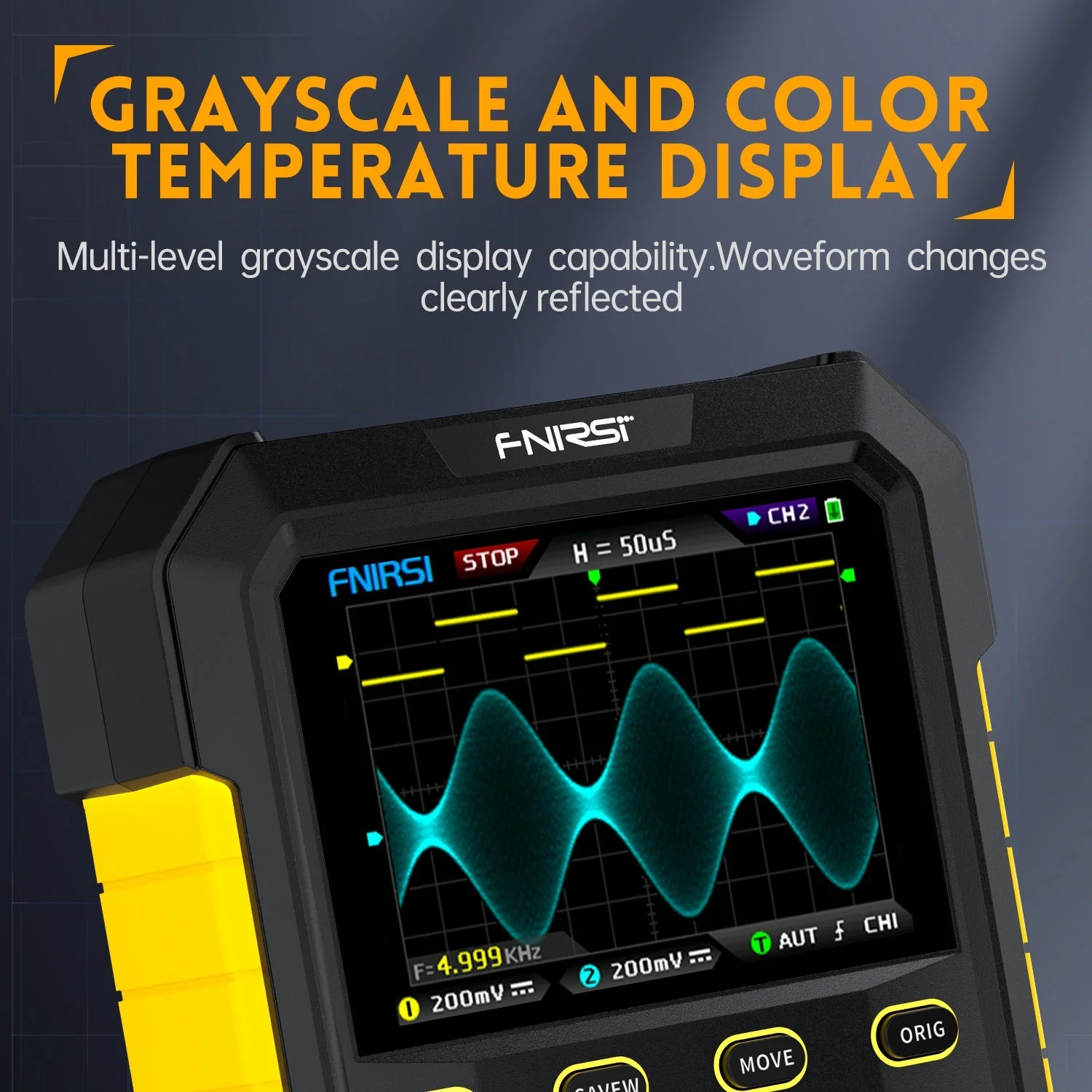

Color Temperature Display
Support

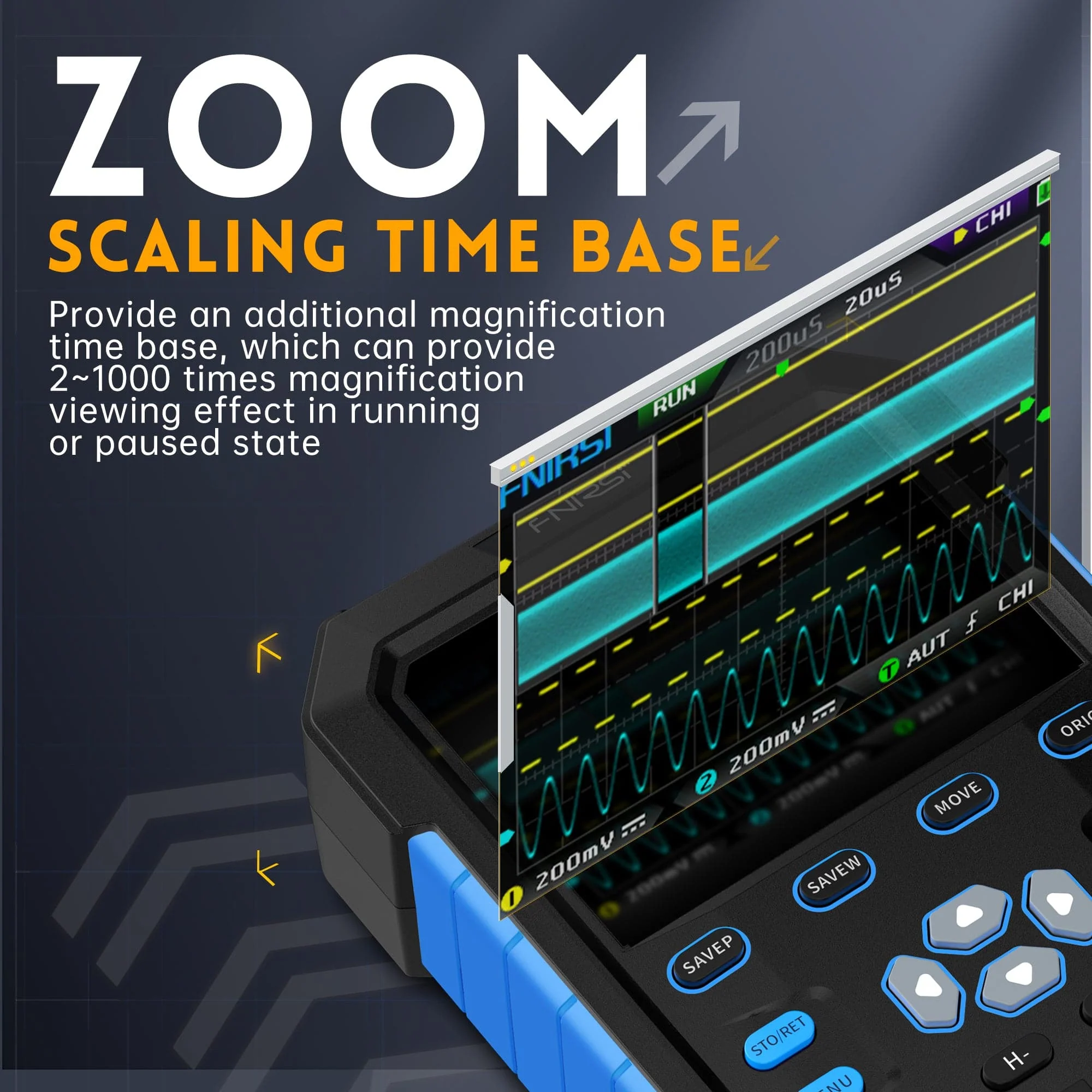

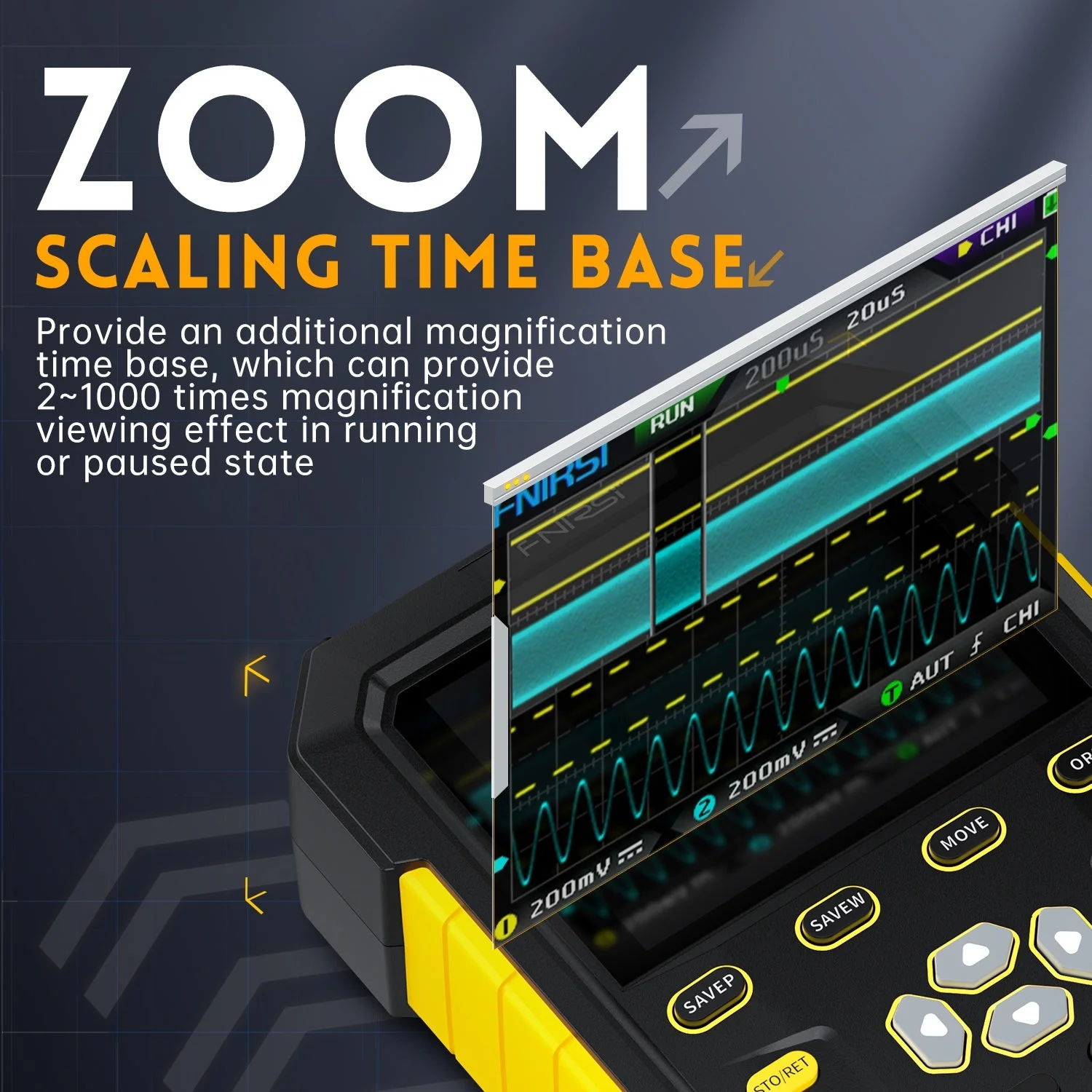

Zoom Scaling Time Base
Support
20M Hardware Bandwidth Limitation
Support
Adjustable Automatic Bandwidth Limitation
Support
X-Y Mode
Support
FFT
Support
Cursor Measurement
Frequency / Period / Amplitude
Trigger Detection
Digital Trigger
Trigger Mode
Auto / Single / Normal
Trigger Edge
Rising / Falling
Roll Mode
Support
Screenshot Storage
90
Waveform Storage
250 Groups
Capture Signal
500
Parameter Measurement
12 Kinds

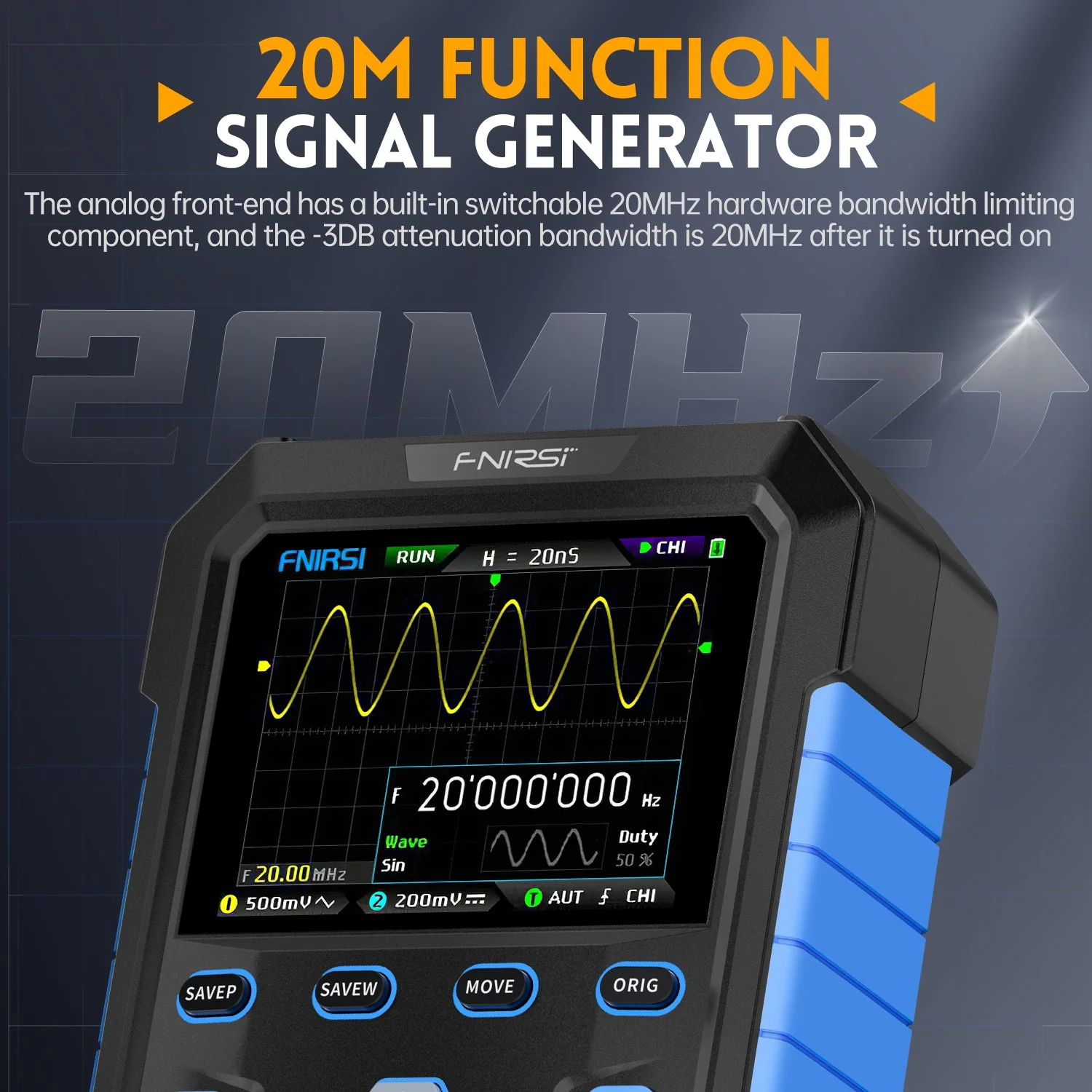

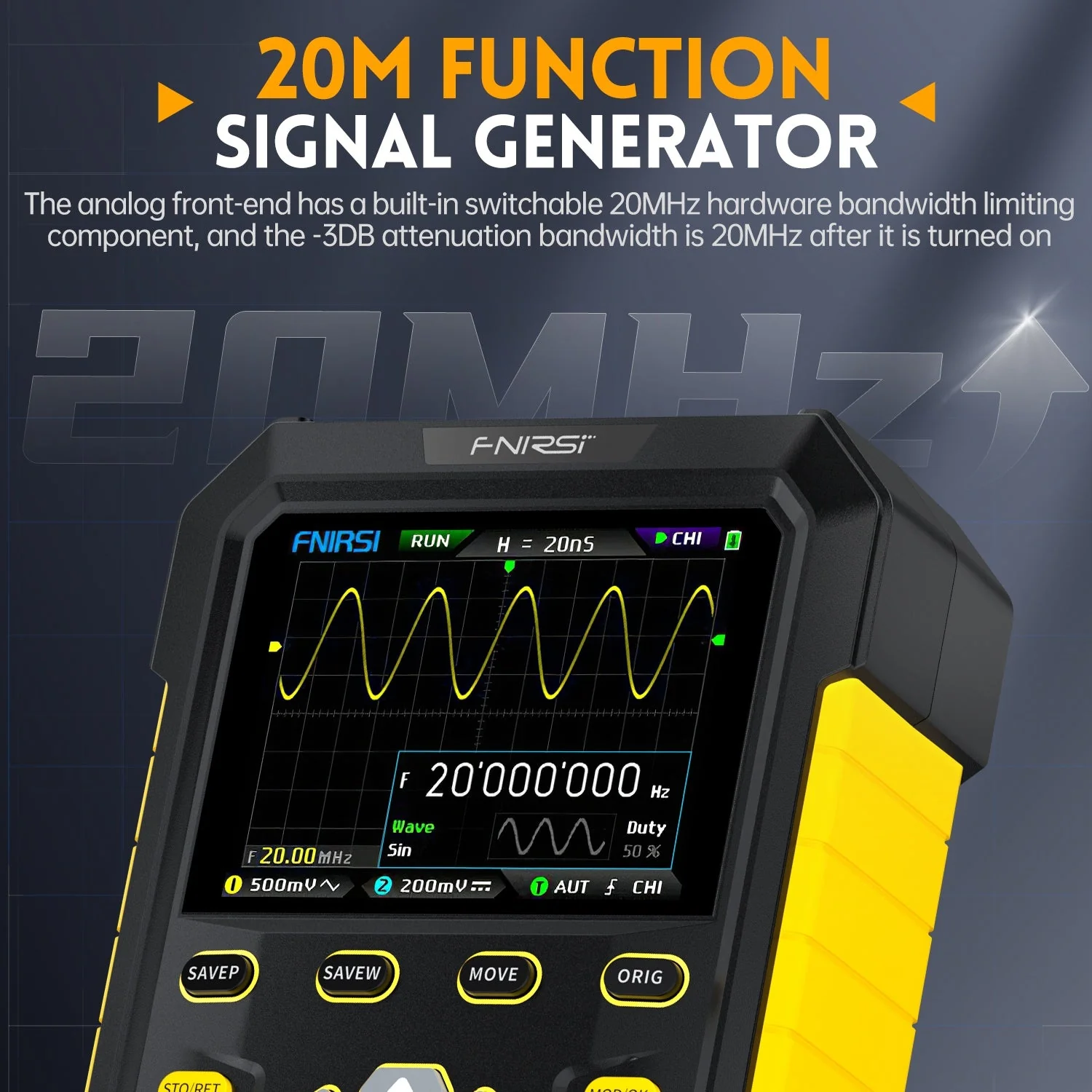

Signal Generator
14 Standard Function Signals
Auto-adjustment
Support
Waveform Manager
Support
Waveform Output
Support
High-voltage Burnout Protection
Support
Screen Size
2.8 Inches
Screen Resolution
320x240 Pixels
Display Technology
IPS Full View
Expansion Interface
USB Transmission Interface
Auto Power-off
5 minutes ~ 2 hours
Firmware Upgrade
Support
Charging Requirements
5V 2A

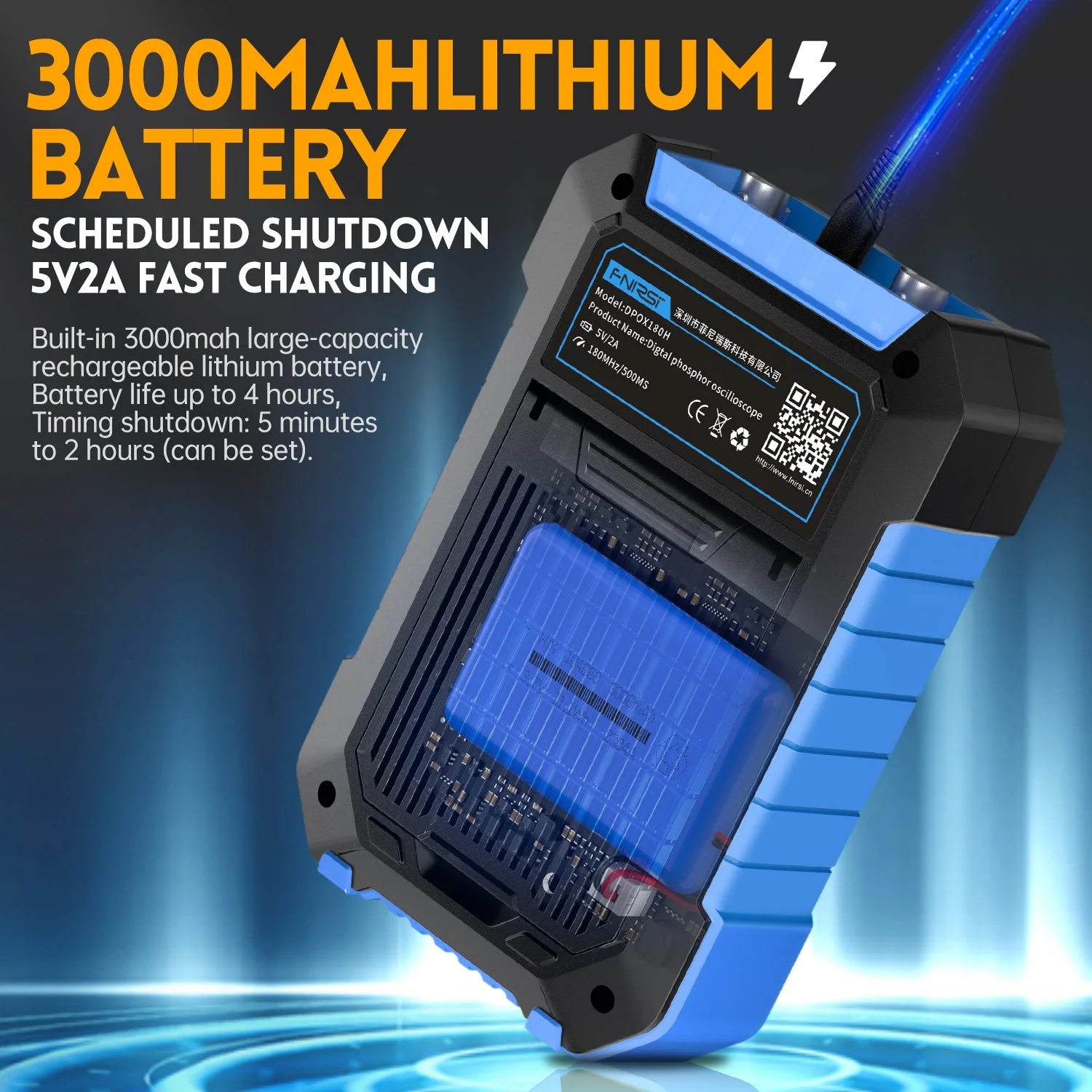

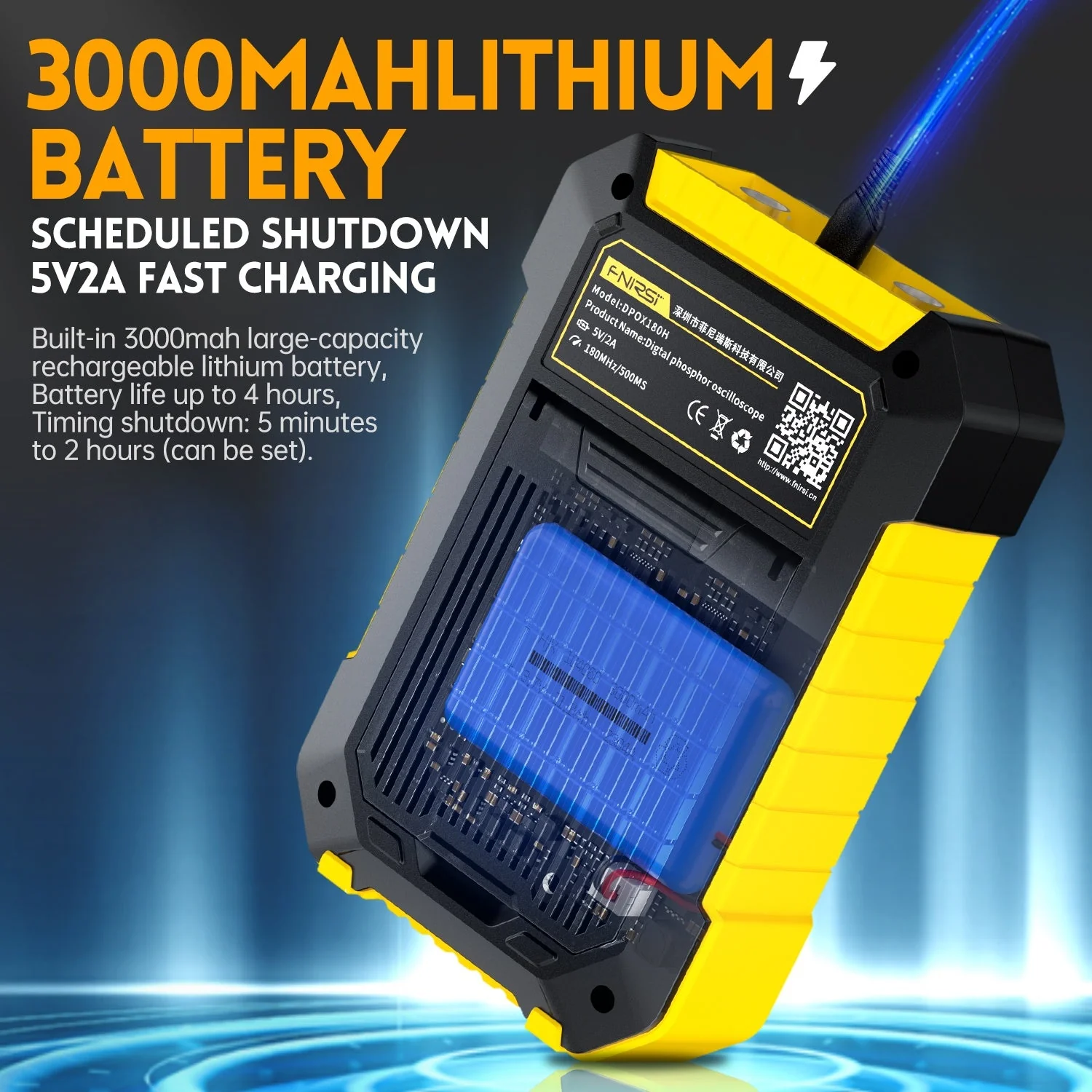

Battery Capacity
3000mAh
Standby Time
3.5 Hours at Full Charge
Dimensions
135x90x40mm
